ACTUS® DOTSIGHT
CHARACTERISTICS

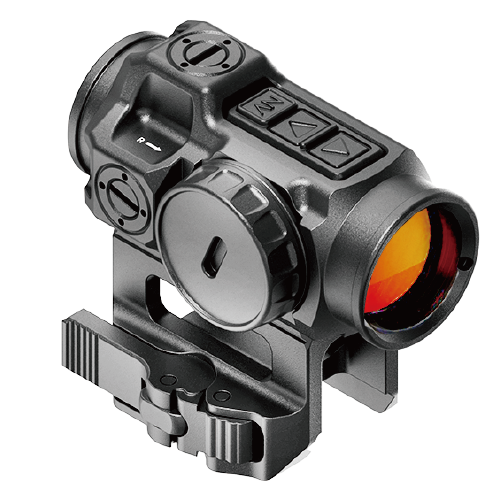

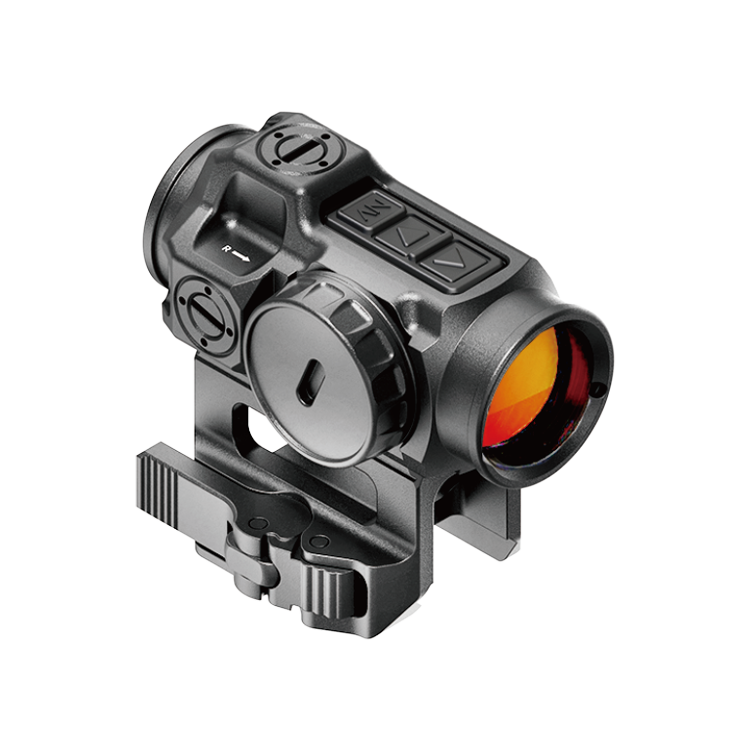

CORE-5
Reflex Sight
The CORE-5 delivers both premium optical performance and legendary durability. It features three reticle options and enhanced functions tailored for professional users. A top-mounted illumination control ensures easy, ambidextrous operation, and it won't get in the way of your gear. The dedicated NV override switch allows for instant adaptation to changing light conditions. The CORE-5 is powered by a single CR2032 battery, delivering up to 20,000 hours of continuous use at level 8.
SPECIFICATIONS
| Magnification | 1× |

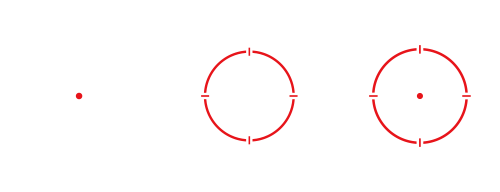

| Reticle | Red Dot (2MOA) Circle (65MOA) Circle + Dot |
| Brightness Levels | Level 12 (NV 4Lv, Day 7Lv, Special 1Lv) |
| Battery Type | CR2032 × 1EA |
| Battery Life | 20,000 hrs @Lv 8 |
| Dimension (mm) | 76.2 × 45.7 × 69.5 |
| Weight (g) | 192.0 |
| Objective Lens | 20 mm |
| Night Vision Compatibility | Yes |
| Mount | MIL-STD-1913 Picatinny Rail |

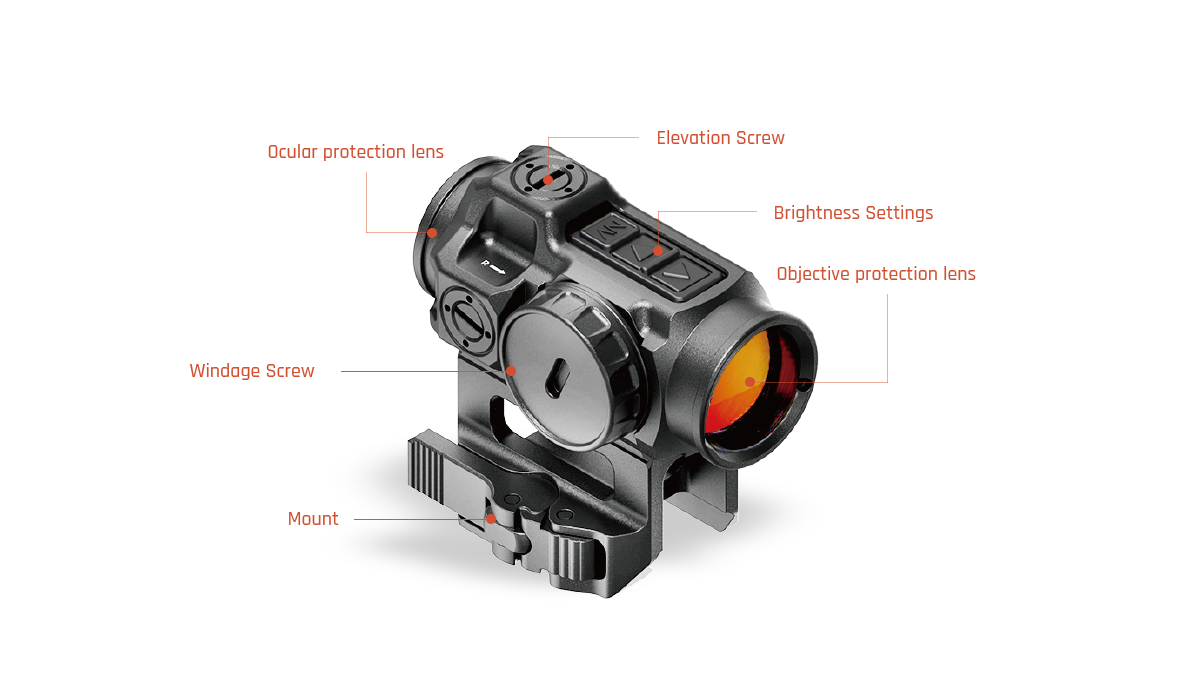

Features
Convenient Control
The top-mounted brightness adjustment ensures effortless operation for both left- and right-handed users, while its ergonomic design minimizes interference with tactical gear.
Rapid Tactical Response
With a dedicated night-vision override switch, you can instantly adapt to sudden changes in lighting conditions in the field.
Optimized Power Management
Powered by a single CR2032 battery, the CORE-5 delivers up to 20,000 hours of continuous operation at Lv8 brightness setting.
OVERVIEW
Exceptional Aiming Performance
Offering 0.5 MOA adjustments per click, a 2 MOA red dot, and up to 100 MOA adjustment range, the CORE-5 ensures outstanding accuracy and precision.
AL7075-T6 (Housing)
The AL7075-T6 material is known for its high tensile strength and hardness, as well as its excellent urability against external impacts.
Compatible with the PARA-3M high-performance magnifier
Our ACTUS red dot sights are all designed to be used with a 3x high-performance magnifier. This allows you to smoothly transition from 1x to 3x magnification in a single motion, even while aiming.
CORE-5
ACTUS Reflex Sigh
