ACTUS® AI BOX
CHARACTERISTICS

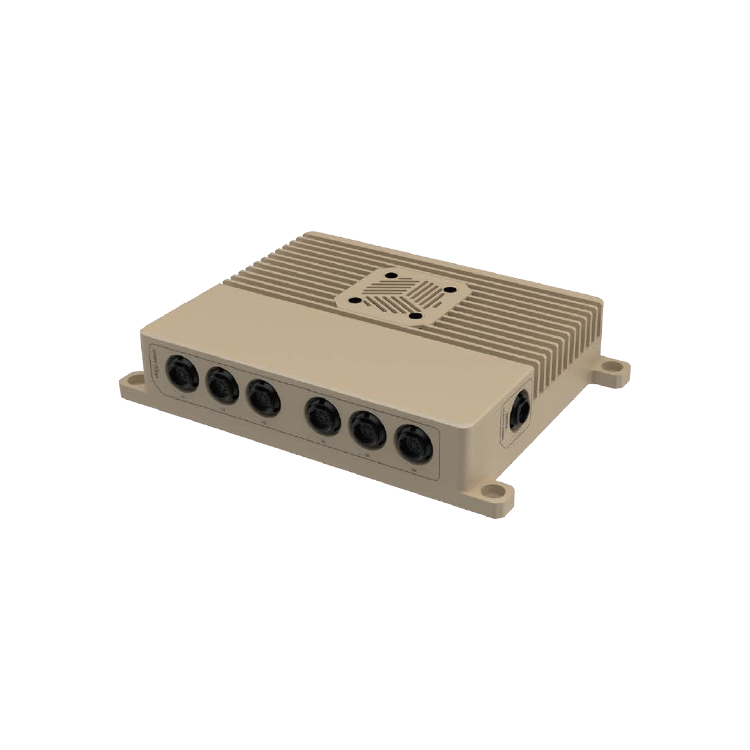

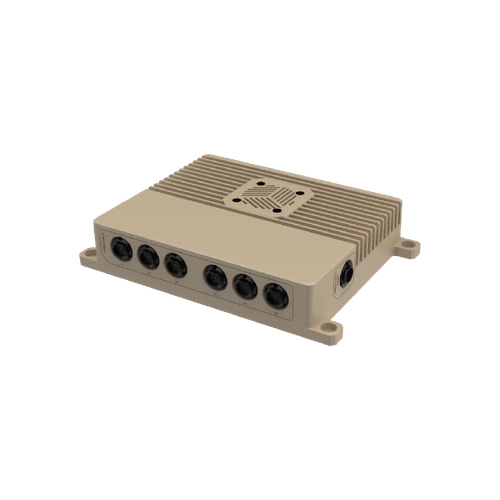

DRC-6CH
AI VEHICLE-MOUNTED CONTROL UNIT
The DRC-6CH AI BOX is a crucial hub for 360° vehicle perception. It supports the input of up to six Spike series thermal imaging cameras and provides AI intelligent recognition for two of them. The integrated video footage will be played on a single monitor, eliminating the hassle of having too many monitors. The system offers a computing power of 12 TOPS and can achieve functions such as target detection, classification, depth distance perception, and collision warning.
SPECIFICATIONS
| Computing Power | 12 TOPS(3SOC) |
| CPU | 4-core CortexA 53(3SOC) |
| Power Supply | DC 24V |
| Power Consumption (W) | ≤ 20 |
| Intelligent Recognition | Target detection, classification, depth and distance perception, collision warning |
| Video Interface | PAL |
| Communication Interface | RS232 |
| Operating Temperature (℃) | -20 ~ +60 |
| Ingress Protection | IP67 |
| Dimensions (mm) | W:135, L:165, H:37 |
| Weight (g) | ≤ 950g |
| Immersion | 10m |
| Battery Type | AA×1 |
| Battery Life (h) | 55 |
| Dimensions (mm) | 96×57×69 |
| Weight (g) | 255 |
Features
High-Performance AI Processing
Equipped with 12 TOPS computing power and triple SoC architecture, the DRC-6CH processes high-volume video data in real time, enabling fast and accurate object recognition and environment analysis.
6-Channel Integration
Supports up to six SPIKE-series thermal imaging cameras for full 360° situational awareness, with intelligent recognition for two channels.
Intelligent Recognition System
Provides real-time target detection, classification, and depth perception to enhance driving safety and threat awareness. The collision-warning feature prevents accidents in dynamic environments.
Rugged & Reliable Design
Designed to operate in harsh military and industrial environments, the DRC-6CH features an IP67-rated enclosure and wide operating temperature range from -20°C to +60°C.
DRC-6CH
• Military and tactical vehicle 360° perception systems
• Autonomous and semi-autonomous driving assistance
• AI-based surveillance and reconnaissance platforms
• Industrial monitoring and collision-prevention systems
