ACTUS®
NIGHT VISION RIFLE SCOPE
CHARACTERISTICS

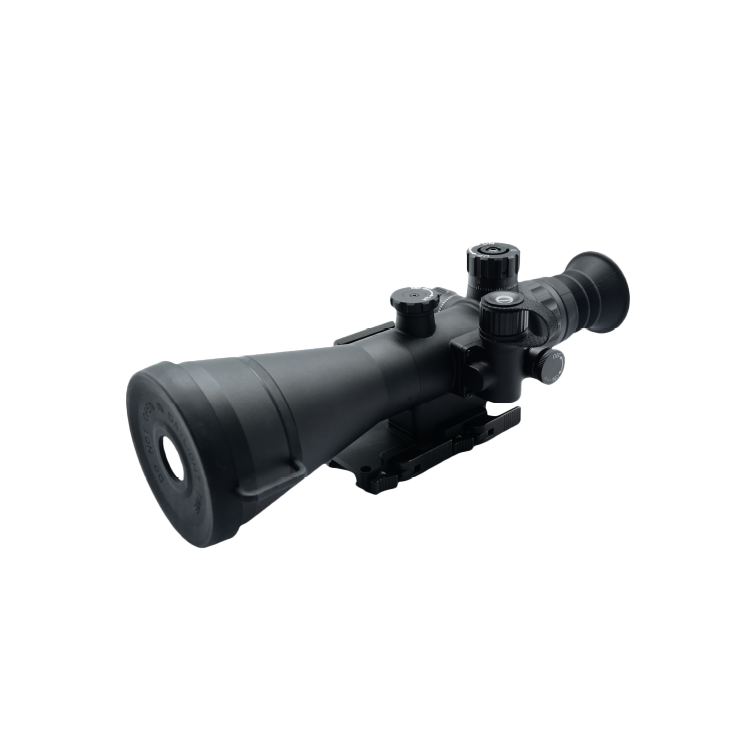

TGE-NS1
NIGHT VISION RIFLE SCOPE
The TGE-NS1 is a standalone night vision rifle scope designed for precision engagement in total darkness. It uses a red-illuminated crosshair reticle against a green or white phosphor background for enhanced contrast and targeting accuracy. Built with a Detyl-designed quick-release clamp, the TGE-NS1 ensures rapid and secure mounting. The nitrogen-purged, multi-coated optical system guarantees fog-free clarity and rugged IP65-level waterproof performance.
SPECIFICATIONS
| Generation | Gen 2+ |
| Magnification (×) | 5× |
| FOM | 1600+ |
| Image Color | Green / White |
| Autogate | Yes |
| Diopter Adjustment Range | +5 ~ -5° |
| Field of View (°) | 10° |
| Exit Pupil Diameter | 11 mm |
| Weight | 850 g (No Battery) |
| Continuous Battery Life | 40 ~ 50 h |
| MTTF | 10,000 h |
| Operating Temperature | -40°C ~ +60°C |
| Resolution (lp/mm) | 57 ~ 64 (64 ~ 72) |
| Detection Sensitivity (M) | 2,000 |
| Detection Distance (M) | 1,500 |
| Aperture | 55 mm |
| Distance to Pupil | 50 mm |
| Reticle Type | Red Circle |
| Windage & Elevation | 1/6 MOA per click |
| Battery Type | CR123A × 1 |
| Relative Humidity | 5 – 98% |
| Impact Resistance | > 1,000 G |
| Waterproof | IP65 |
| Dimensions (mm) | 257 × 92 × 90 |
FEATURES
High-Contrast Reticle
Red-illuminated crosshair ensures precise aiming against green or white phosphor background for optimal visibility.
Durable and Reliable
Built to withstand harsh environments with IP65 waterproofing and >1,000G impact resistance for mission-ready durability.
Precision Adjustment
1/6 MOA windage & elevation adjustments with zero-lock function allow for consistent accuracy and fast zeroing.
TGE-NS1
NIGHT VISION RIFLE SCOPE
