ACTUS®
MULTI-FUNCTIONAL THERMAL MONOCULAR
CHARACTERISTICS

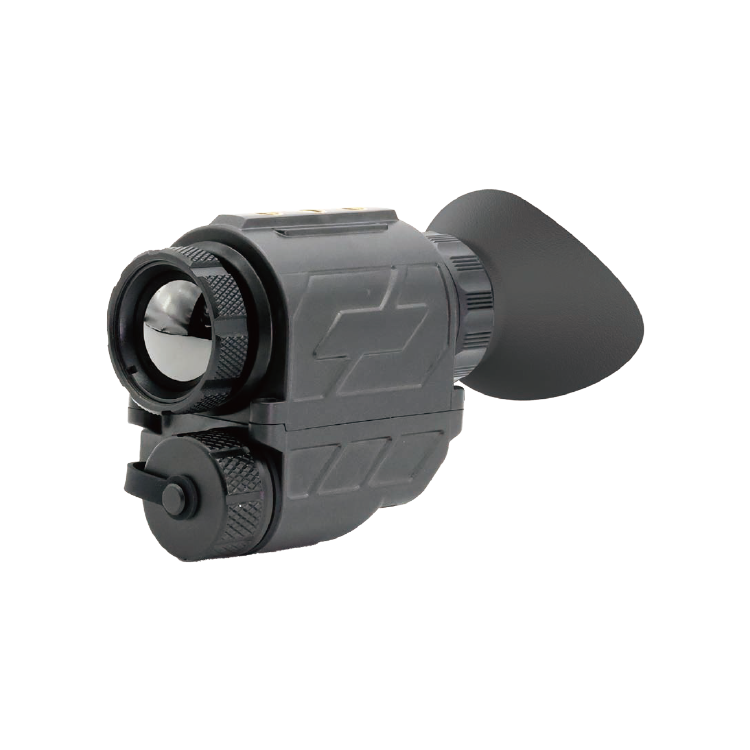

VIPER-ML
MULTI-FUNCTIONAL THERMAL MONOCULAR
The VIPER-ML employs a 12 μm high-sensitivity infrared detector and advanced thermal imaging technology,
delivering superior night vision performance in outdoor operations. Its ultra-light PEEK composite housing
ensures high durability and comfort for long-term use. Designed as a multi-functional device, it can be used
both handheld and head-mounted, offering outstanding versatility for surveillance and tactical missions.
SPECIFICATIONS
| Magnification (×) | 1× |
| Diopter Adjustment (D) | -5 ~ +5 |
| Resolution (Pixels) | 384×288 / 640×512 |
| Pixel Pitch (μm) | 12 μm |
| Frame Rate (Hz) | 50 Hz |
| Field of View (°) | 16.3 × 12.3 |
| Lens System (mm) | 16 F1.0 / 26.7 F1.1 |
| Focus Range (mm) | 250 mm ~ ∞ |
| Display Resolution (Pixels) | 1024×768 OLED |
| Battery Type | CR123A (3 V) |
| Battery Life (h) | Up to 5 (18650 cell) |
| Dimensions (mm) | 68 × 92 × 42 |
| Weight (g) | 200 g |
| Color Modes | Black Hot, White Hot, Orange Hot, Rainbow |
| Material | High-Strength PEEK Composite |
| Waterproof Rating | IP67 |
FEATURES

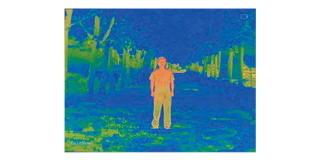

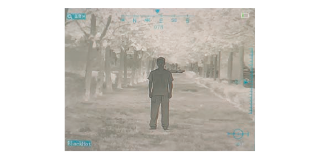

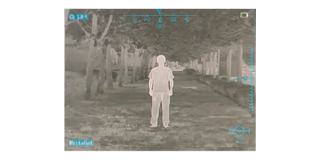

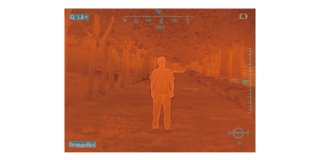

 Black Hot Displays heat signatures as bright against a darker background for high-contrast detection. |  Orange Hot Highlights thermal targets with vivid orange tones for enhanced situational awareness. |  Rainbow Applies a multi-color gradient to emphasize temperature variations across the scene. |  White Hot Renders warmer objects brighter for intuitive recognition in both day and night conditions. |
VIPER-ML
MULTI-FUNCTIONAL THERMAL MONOCULAR
