ACTUS®
HD INTELLIGENCE BINOCULAR
CHARACTERISTICS

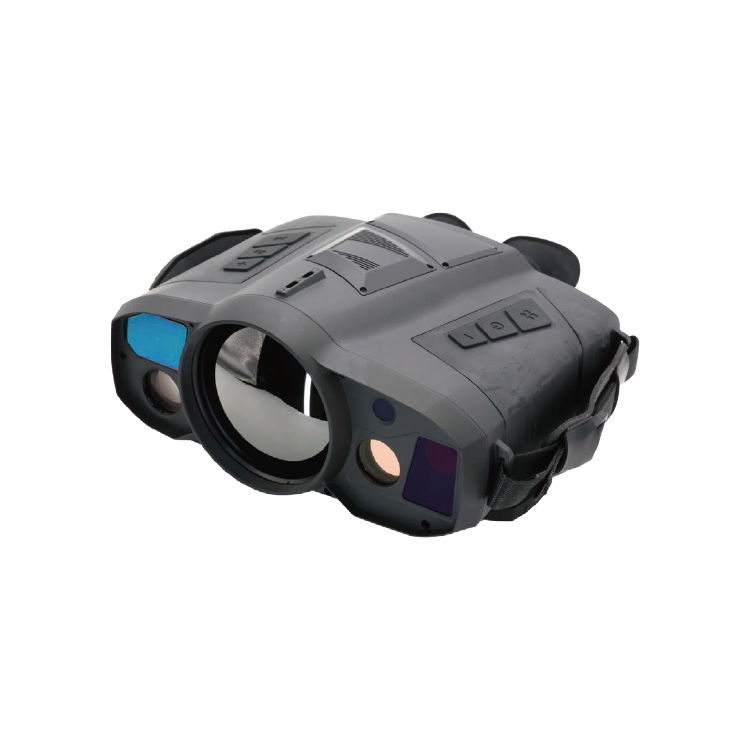

VPR-BHS
HD INTELLIGENCE BINOCULAR
The VPR-BHS is a high-performance HD intelligence binocular system that integrates day and night imaging capabilities. It supports multi-sensor fusion, GPS positioning, and laser rangefinding to ensure precise situational awareness in complex operations. Equipped with AI-assisted target recognition and long-range image transmission, the VPR-BHS delivers superior tactical advantage and mission adaptability.
SPECIFICATIONS
| Sensor Type | Uncooled VOx Microbolometer |
| Detector Resolution | 640×512 / 12μm |
| Lens (Thermal) | 75 mm / F1.0 |
| Lens (Day Camera) | Continuous Zoom 20× (5.5–110 mm) |
| Display | 0.5" OLED / 1024×768 |
| Laser Rangefinder | 1,550 nm / Max 6,000 m / Class 1M |
| GPS / Compass | Integrated GNSS / Digital Compass |
| Communication | Wi-Fi / 4G / Bluetooth |
| Video Output | HDMI / IP Stream |
| Storage | 64 GB Internal / Micro SD (up to 256 GB) |
| Battery | Rechargeable Li-ion / 8 hours |
| Weight | ≤ 1.8 kg |
| Dimensions (mm) | 250 × 160 × 90 |
| Operating Temperature | -40°C ~ +60°C |
| Waterproof Rating | IP66 |
FEATURES
Multi-Sensor Fusion
Combines visible, thermal, and laser sensors for comprehensive battlefield awareness.
AI Target Recognition
Integrated AI algorithms identify and classify objects, assisting in rapid threat detection.
Wireless Data Link
Supports real-time image transmission and network synchronization through 4G and Wi-Fi.
Rugged & Reliable
IP66-rated waterproof design and impact-resistant housing for harsh environments.

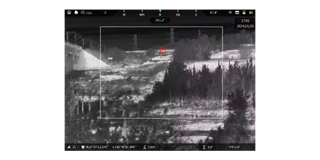

IR MODE

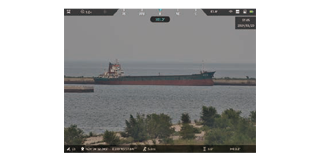

TV MODE
VPR-BHS
HD INTELLIGENCE BINOCULAR
