ACTUS®
COOLED MWIR MULTI-FUNCTION BINOCULAR
CHARACTERISTICS
VPR-MB

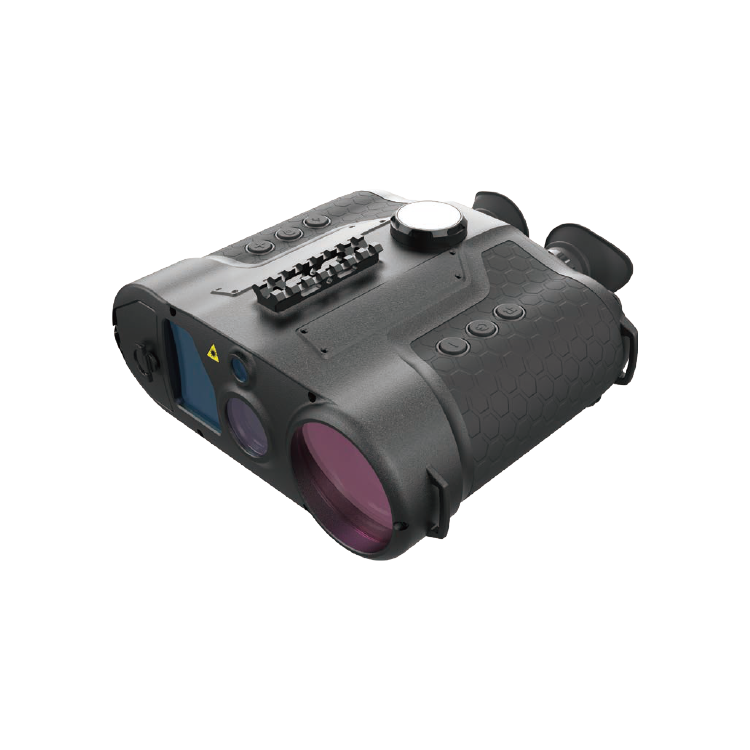

COOLED MWIR INFRARED MULTI-FUNCTION BINOCULAR
The VPR-MB is a compact, intelligent observation binocular integrating MWIR cooled infrared, visible light, laser rangefinding, and laser pointing functions. It provides multi-mode image observation, ultra-long-range detection, precise positioning and target guidance, image capture, video recording, and real-time data transmission — supporting tactical reconnaissance, target acquisition, and field intelligence operations.
SPECIFICATIONS
| Thermal Channel Resolution | 640×512 |
| Thermal Field of View (°) | 18.2×14.6 ~ 2.3×1.8 |
| Day Channel Resolution | 1350×1080 |
| Day Field of View (°) | 25.4×20.4 ~ 2.6×2.1 |
| Laser Rangefinder (nm) | 1535 (Eye Safe) |
| Max Range (m) | ≥12,000 |
| Accuracy (m) | ±2 |
| Compass (Azimuth Accuracy) | ±0.5° RMS |
| Inclination Accuracy | ±0.3° RMS |
| Laser Pointer | 830 / 850 nm, Class 3B |
| Wireless Interface | Wi-Fi |
| Display | 1920×1080 OLED |
| Battery | 8×18650, ≥5h operation |
| Interfaces | DC / USB / RS232 / PAL |
| Dimensions (mm) | 201×182×94 |
| Weight (kg) | ≤3.5 (with batteries) |
| Waterproof Rating | IP67 |
FEATURES
Continuous Zoom
Provides seamless zooming capability for both day and thermal channels, enhancing long-range observation.
Precise Positioning
Integrated laser rangefinder and compass ensure accurate target location and direction data.
APP Connectivity
Wireless data transmission and control through dedicated application for efficient field operations.
Multiple Interfaces
Equipped with DC, USB, and RS232 interfaces to support diverse communication systems.
Ultra-Long Observation
High-performance MWIR sensor enables detection up to 12 km, suitable for surveillance and reconnaissance missions.

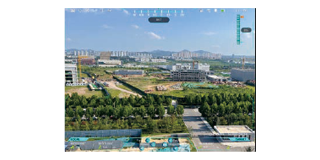

  IR MODE |  TV MODE |
VPR-MB
COOLED MWIR MULTI-FUNCTION BINOCULAR
